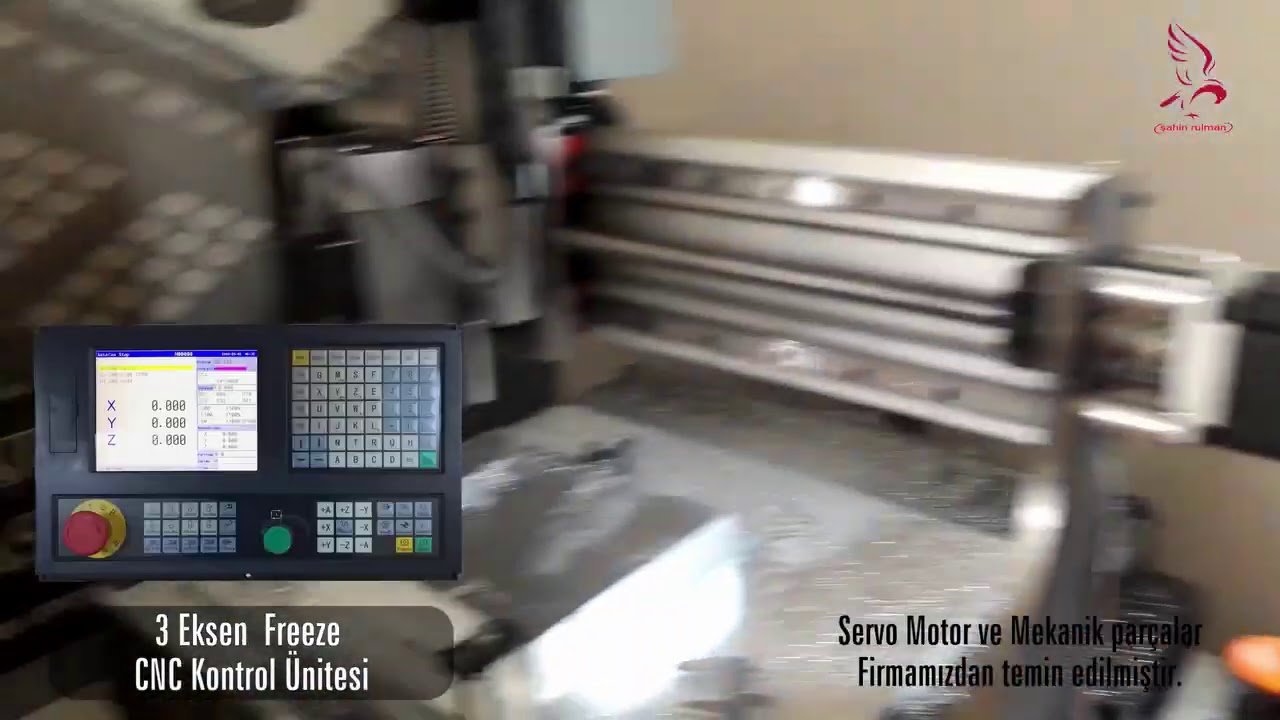

3 Axis Milling CNC Control Unit - Mica3

3 Axis Milling CNC Control Unit Mica-3 Features

-5MHz Pulse Output Frequency

– Macro and PLC function
– Maximum speed: 300m/min
– Feeding speed: 150m/min.
– Multiple function: drilling and boring operations such as drilling, round groove, rectangular groove, full circle.
– Macro support function.
– 64 mb memory, 32 mb user storage.
– 8.4” (800×600) LCD screen.
– Metric support system.
– Chinese or English interface selectable by parameter.
– With USB interface, support USB file processing, software upgrade.
– Realize high-speed DNC, real-time transmission operation of part program.
– External MPG support.
– Basic I/O: 56*40, 40*32 can be arranged freely.
– It can be customized according to your personal needs.
– High anti-jamming switch power (220V AC -> DC 24V & 5V).

– Three axes of X, Y, Z control, three axes of linkage movement.

3 Axis CNC Control System Mica-3 Technical Drawing

Click here to download the Control Panel User Catalog as PDF….
