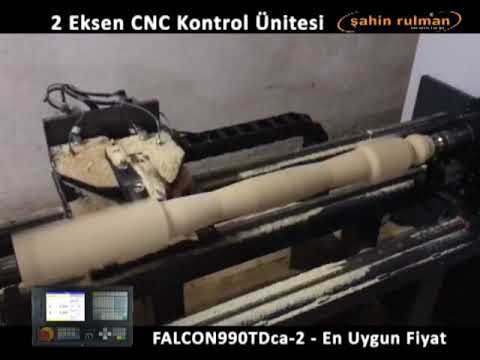

2 Axis CNC Control Unit

3 axis CNC TORNA Control Unit


Unit, handwheel and 5 meter signal cables are included in the set.

Falcon 990 TDca-2 CNC Control Unit Specifications

– 800×600, 8.4-inch LCD screen
– Maximum 99 sets
– 128 mb memory, 100 mb user storage
– 5MHz Pulse Output Frequency
– Maximum speed: 300m/min
– Feeding speed: 150m/min.
– High anti-jamming switch power (220VAC -> 24VDC & 5VDC)
– Freely editable internal PLC programs
– Supports file operation on flash disk, system configuration and software update via USB interface.
– English display selectable by parameter.
– 0~10V analog voltage output in two channels, support dual spindles
– 32-bit high performance, low power consumption.
– Basic I/O: 40*24, freely editable.

2Axis Lathe CNC Control Unit

Falcon 990 TDca-2 CNC Control System G Code List

Technical Drawing of CNC Control System for Lathe Machine

FALCON990TDC CNC CONTROL UNIT CATALOG

Click here to download the catalog as PDF….
