Mechanical Products, Linear Rail Car SHN B Series, Linear Slide Rail Cars

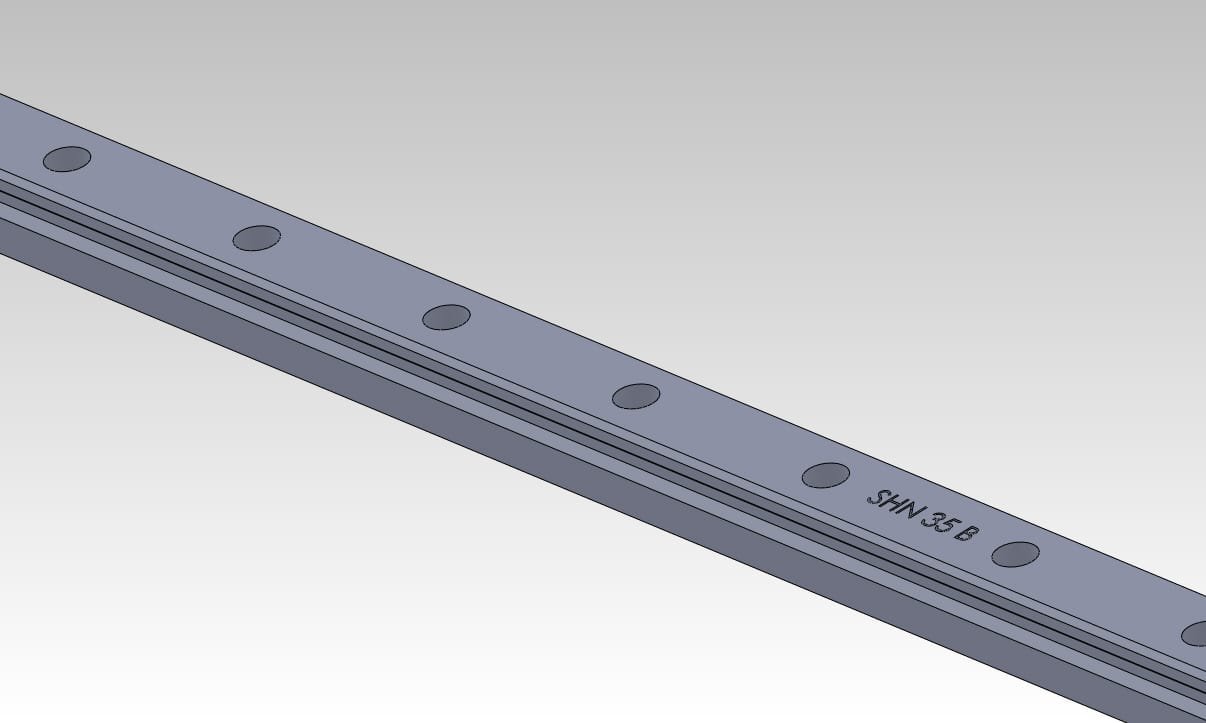

Linear Slide Linear Rail Carriage SHN 35 B
SKU: SHN 35 B| LINEAR RAIL CAR TECHNICAL SPECIFICATIONS | |
| Height Including Rail | 55 mm |
| Hole Center Width x Length | 50×50 mm |
| Overall length | 112.40 mm |
| All Width | 70 mm |
| Static Carrying Capacity | 102.87 KN |
| Dynamic Carrying Capacity | 49.52 KN |
| Rail Hole Center Distance | 80 mm |
| Rail Base Width | 34 mm |
$25,00
SHN B Series
Measurement: mm Load: kgf
Linear slide, linear rail carriage, is a technology used in precision linear motion. The steel carriage, mounted on the rail with 4 rows of ball bearings, allows for different movements without compromising precision. The narrow-type SHN xx B series does not compromise strength in narrow-section application areas. It ensures that every movement in different directions remains stable. It is safely used in areas such as grinding, drilling, chip removal, painting, etc.
SHN B Series 3D CATALOG
Linear Slide Rail and Carriage SHN 35 B Product Video
