Threaded Shaft NUT SFUR 2505 - METAL DEFLEKTOR
SKU: SFUR 2505 DEFLEKTÖR$22,00

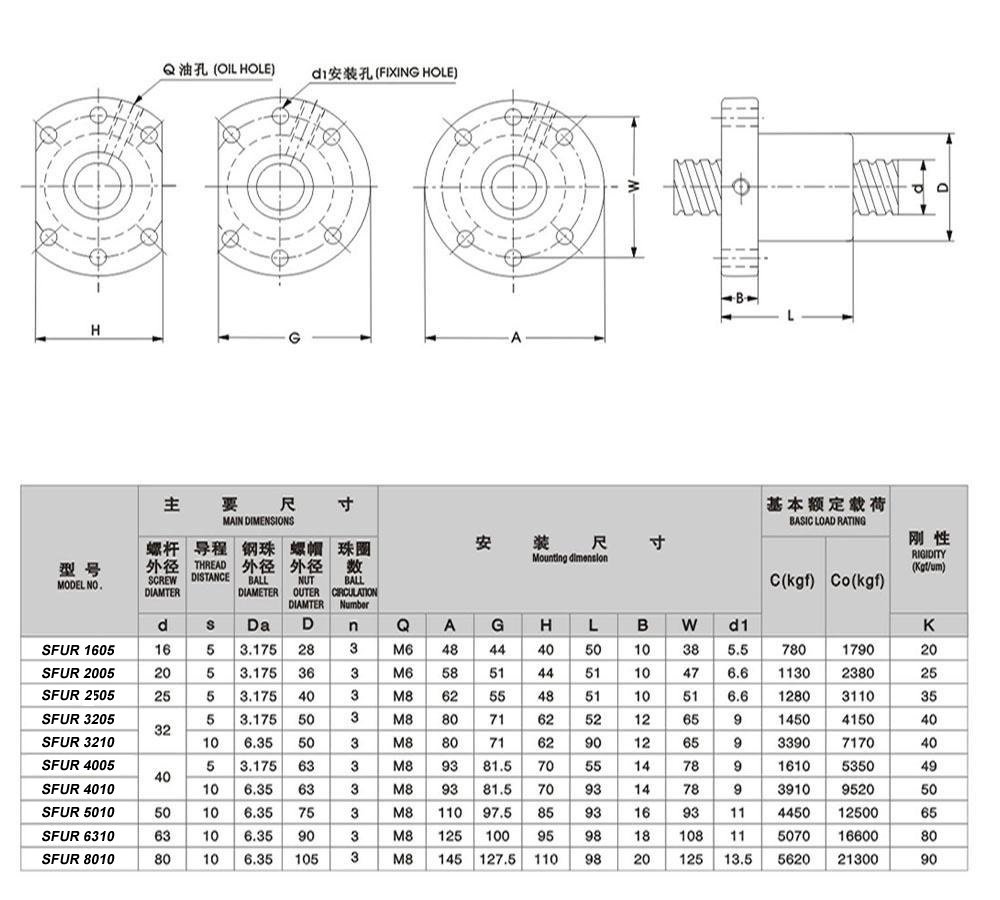

SFUR Series
Measurement: mm Load: kgf
The SFUR xxxx series threaded shaft nut and the SCR xxxx series threaded shaft< are reliable drive components for movements fixed with linear bearings . Ball screws with 5mm pitch and 10mm pitch enable complete movement in conjunction with elements such as servo motors, stepper motors, and geared motors. Since the screws are manufactured using a rolling process, they have a surface hardness of 55 HRC. Thanks to the felt on both sides of the steel nuts, dust is kept out. With 4 rows of ball bearings, it has high axial force resistance. Flanged series are secured to the moving part using the “nut body” by gripping the flange. They maintain their precision even at high speeds and are long-lasting. Manufactured using the rolling method, they have a surface hardness of 55 HRC.
Screw-on Mile Nut Installation video: Screw-on Mile Nut Installation
Installing ball nuts on machined threaded shafts: Nut installation
Video on collecting scattered ball nuts: Screw Shaft Nut Collection
Threaded Shaft Nut Sfur 2505 Product Video
Based on 0 reviews
Be the first to review “Threaded Shaft NUT SFUR 2505 – METAL DEFLEKTOR”
